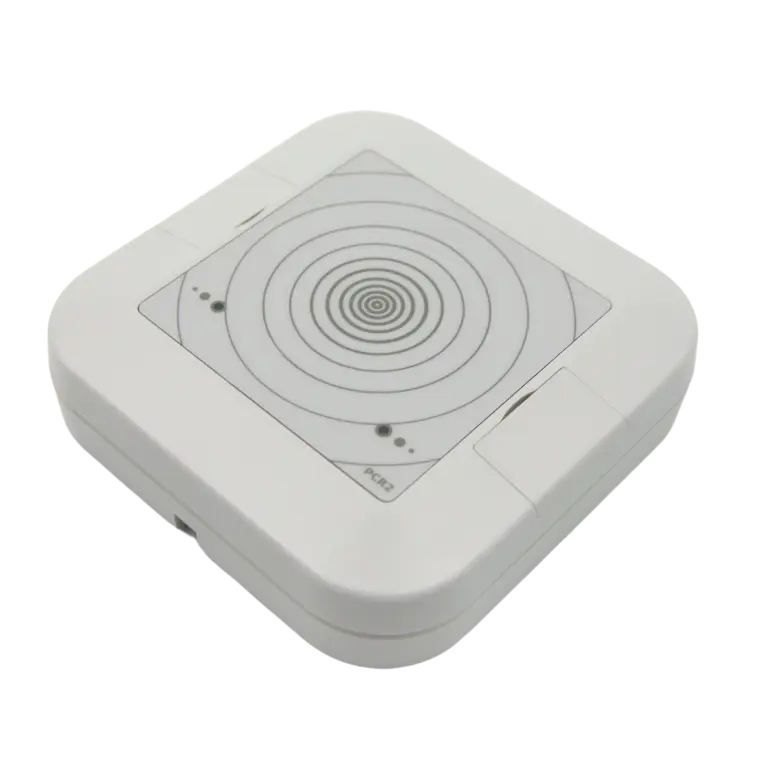

PCR2-IN LoRaWAN® Radar People Counter

The PCR2-IN is a compact, bidirectional People Counter for indoor use that is based on state-of-the-art 24 GHz radar technology. Counting is completely anonymous and GDPR-compliant, without a camera or personal data.




 Documents

Thanks to its side or overhead mountable design, the sensor is ideal for People Counting in entrance areas, hallways and corridors - for example in offices, public buildings or educational institutions.

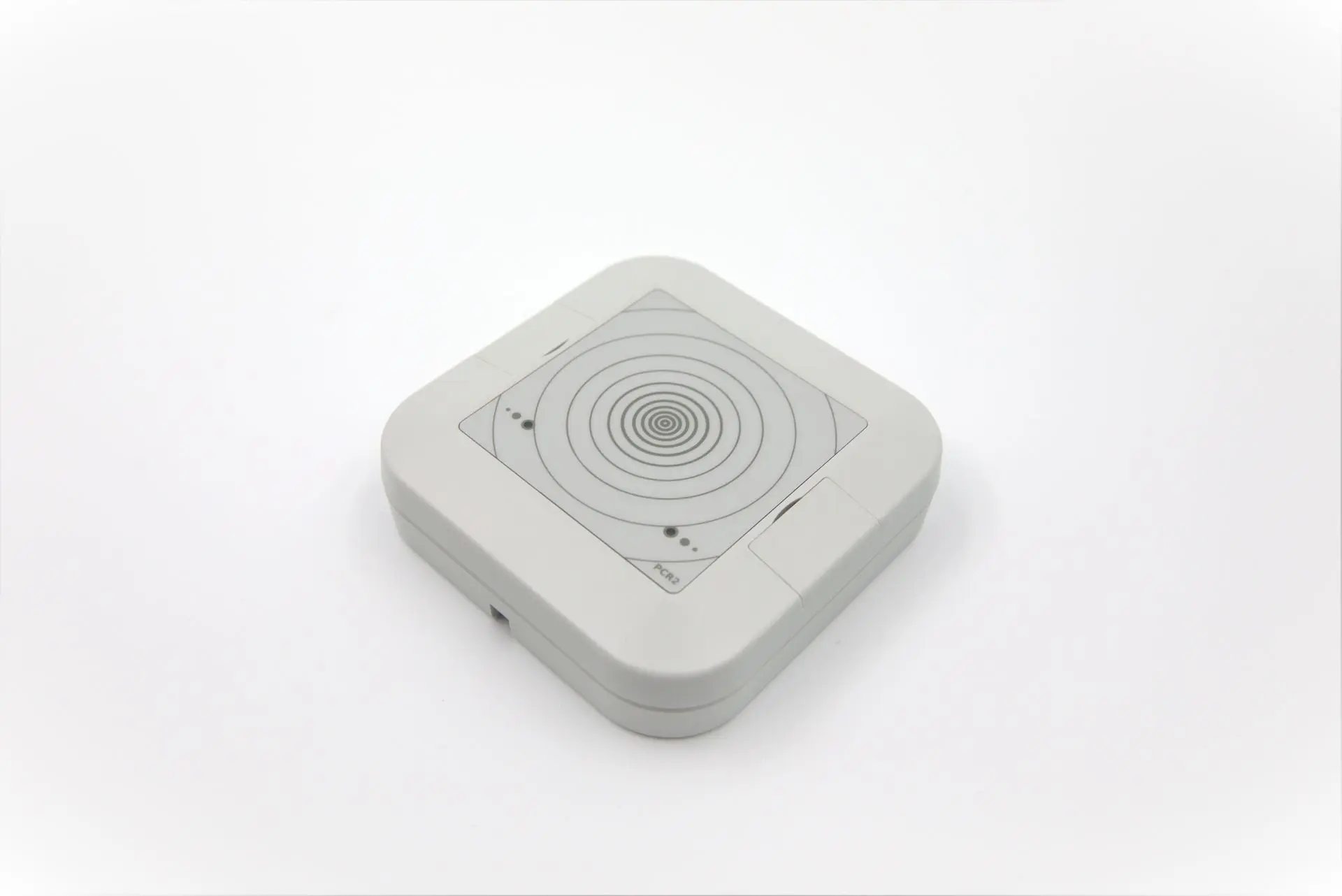

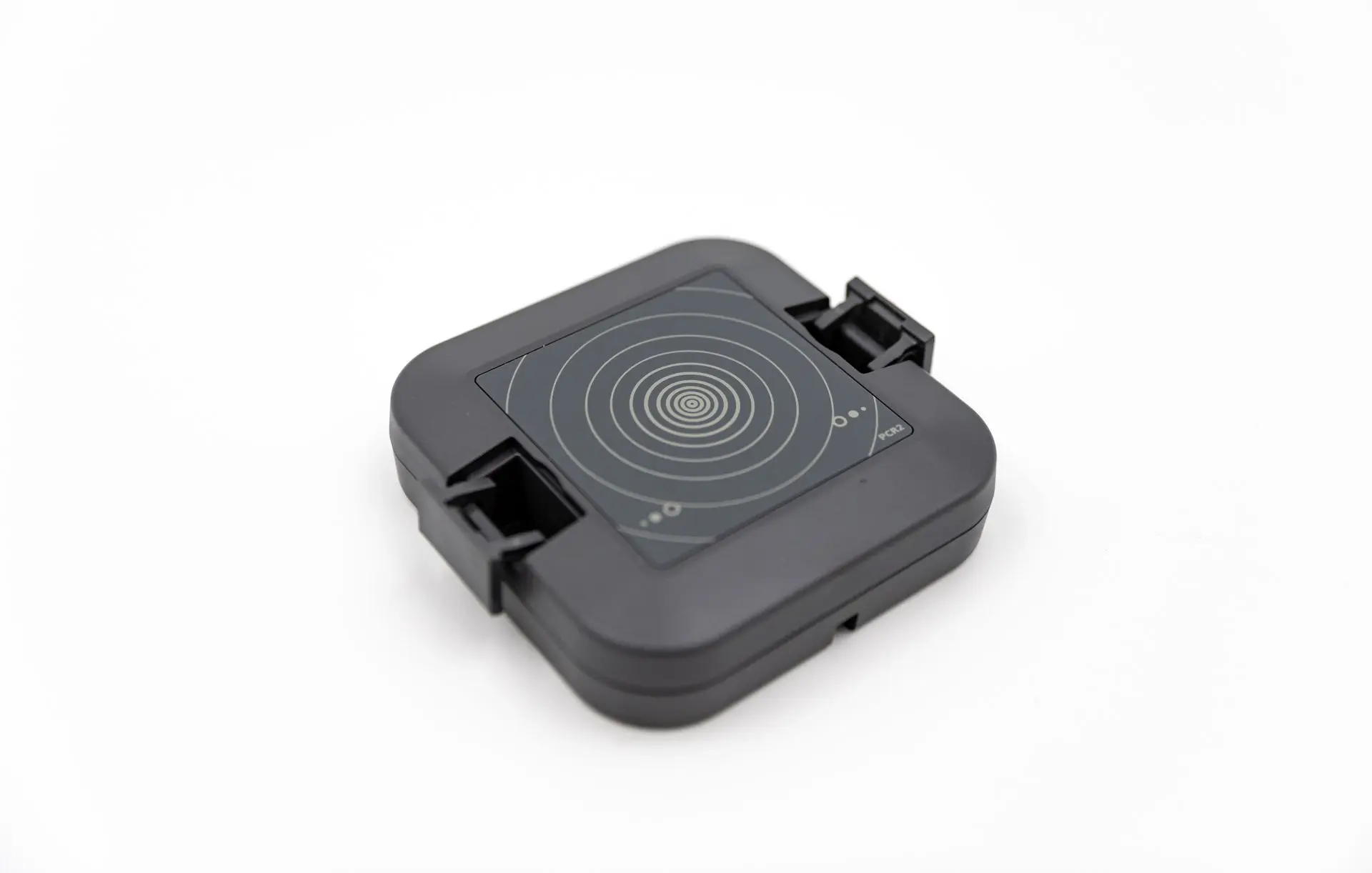

The PCR2-IN is available in two colour variants: charcoal gray​ and white gray, suitable for different interior designs.

Fast commissioning and flexible configuration

The PCR2-IN can be configured via the integrated USB port or via LoRaWAN® downlink and is ready for use in just a few minutes - without special expertise or time-consuming calibration. Power is supplied flexibly via USB or via a 5-12 V DC power source.

Features

  • Anonymous bidirectional people counting with 24 GHz radar technology
  • Installation parallel to the running direction for optimum integration into existing infrastructure
  • Two status LEDs for counting from left to right or vice versa
  • Counting modes: interval counting or totalisation
  • LoRaWAN® data transmission (EU868, AS923, AU915)
  • Freely selectable uplink intervals:
    from 3 minutes to 1 day
  • Simple configuration via USB or LoRaWAN™ downlink
  • Firmware updates available free of charge and for life
  • Slim design with concealed wall mounting
  • Swiss Made with 24 months warranty

Application Examples

  • People Counting in entrance areas and corridors
  • Building Management and Space Optimisation
  • Visit and Capacity Analysis in public facilities
  • LoRaWAN®-based Smart Building Solutions

Scope of delivery

  • 1x PCR2-IN Sensor
    (available in charcoal grey or white gray )
  • 1x USB power supply unit
  • 1x USB extension cable (2 m)
  • 1x QuickStart guide

Accessories (optional)

  • MT80-10: Tilting bracket (80°) for door monitoring

Technical details

  • Detection range:
    0.5 - 5 m (sideways) / 50 - 500 cm (overhead)
  • Movement speed:
    1 - 20 km/h
  • Radar frequency:
    24 GHz | Beam angle: 80° / 34°
  • Dimensions:
    100 x 100 x 25 mm
    Weight: 145 g
  • Protection class: IP2X
  • Power supply: 5 V USB / 5-12 V DC (25 mA)
